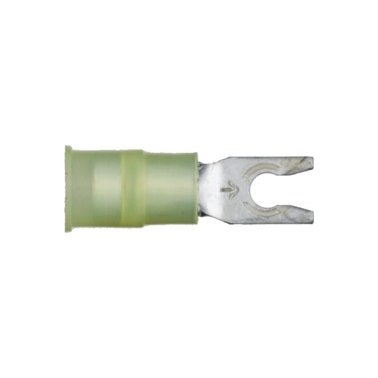

Electro-Lok Spade Terminal 12-10 AWG

Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.
The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Won’t drop off the stud when the nut loosens
• Spring-like tongue locks in place around the stud even when mount screw is not tightened
• Extra force is required to remove from stud
• Manufactured from high-grade copper for the highest conductivity
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
