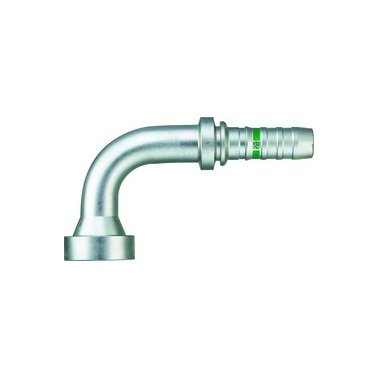

Gates® Global Spiral Series Crimp-on End Fitting

Gates® - Global Spiral Series Split Flange Split Flange Caterpillar Style 90° 1 (-16)x 1 (-16) Crimp-on End Fitting (Pack of 1)

Item#: 23189

Price: Log In

Standard Pack: 1 ea.

Ship Weight: 1.41

Brand: Gates®

Mfr Model#: 16GS-16FLC90-074

Catalog Page#:8-99

Usually Ships: Today

Representative Image Only

TAA Compliant

Add to List

Description
Tech Specs

• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1".

Item#: 23189
Product Name : Gates® Global Spiral Series Crimp-on End Fitting
Brand : Gates
Manufacturer Series Number : Global Spiral Series
Attachment Method : Crimp-on
Fitting Dimension A (Hose) : 1 (-16) "
Dash Size : -16
Gender : Split Flange
Fitting End Style : Split Flange Caterpillar/Thick Flange
Fitting End Type : Caterpillar Style
Fitting Angle : 90 Degrees
Fitting Dimension B (Working End) : 1 (-16)
Flange Diameter : 1.88 "
O.D.Tube Size : 1
Gates Part Number : 16GS-16FLC90-074
Thread Size : 1.88 "
Size : (-16)X(-16)
Hex Size : 0.375 "
Description : Split Flange 90° Tube Elbow Code 62
Material : Carbon Steel
UNSPSC # : 27121700
TAA Compliant : Yes

Description

• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1".
