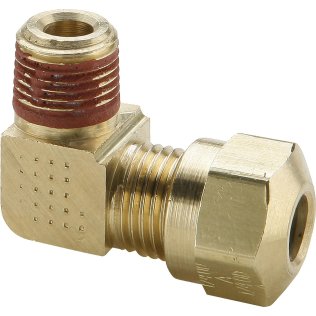

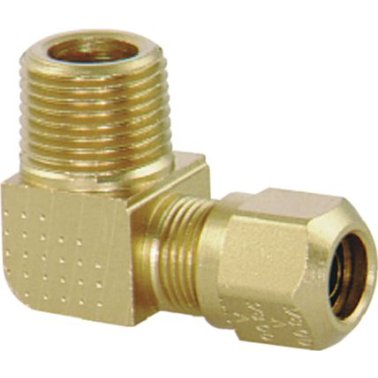

DOT Air Brake Compression Elbow for Nylon Tubing, 90°, Male, Brass, 1/2 x 1/2" Tube x Pipe (Pack of 5)
Representative Image Only
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106• Temperature range: –40°F to +200°F (–40°C to +93°C)• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions1. Cut tubing squarely.2. Insert tubing into fitting until bottomed on seat.3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
| ITEM# | DESCRIPTION | QTY |
| LP937 | 1/2 D.O.T. Compression Lawson Brass Assortment | 1 |
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106• Temperature range: –40°F to +200°F (–40°C to +93°C)• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions1. Cut tubing squarely.2. Insert tubing into fitting until bottomed on seat.3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
This product will be available later
This product will be available later
This product will be available later
† May Require Additional Delivery Time to Canada
