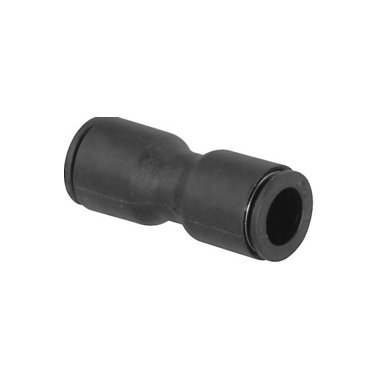

Legris Push-To-Connect Fitting, LF3000, Union, 3/8" Tube

Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: -4°F to +175°F (collet technology 3/16" tube size: 5° F to 155° F)
• Working pressure: up to 290 PSI
• Suitable fluids: compressed air
• Vacuum capability: vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: glass-reinforced nylon 6.6
– Collar: nylon
– Gripping ring: stainless steel (all sizes except 3/16" tube)
– Collet: brass (3/16" tube size only)
– D seal: nitrile
– O-ring: nitrile
– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
