In Stock
Brand:
Tru-Torq®

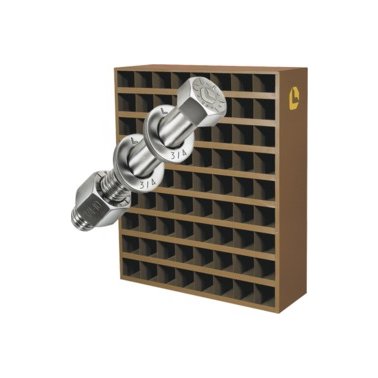

Tru-Torq® Hex Cap Screw Grade 9 Assortment
Tru-Torq® - Hex Cap Screw Grade 9 Assortment, Fine Thread, 1/4 - 3/4 Diameter Size Range, 55 Items, 3,412 Pieces (Pack of 1)
Representative Image Only
Coarse Thread Assortments: 61 Items, 3,490 Pieces
Fine Thread Assortments: 55 Items 3,412 Pieces
• Diameters: 1/4" – 3/4"
• Lengths: 1/2" – 6"
• Includes Hex Nuts, Lock Washers, Flat Washers and Cap Screws
No substitutions on Standard Pre-Planned Assortments
| ITEM# | DESCRIPTION | QTY |
| A40 | 40 Compartment Storage Bin, 21-1/2" H x 35-1/4" W x 12" D | 2 |
| X82891 | ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 7/16" Across Flats, 9/32" Thickness, 1/4-28 | 1 |
| X82892 | ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 1/2" Across Flats, 21/64" Thickness, 5/16-24 | 1 |
| X82893 | ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 9/16" Across Flats, 13/32" Thickness, 3/8-24 | 1 |
| X82894 | ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 11/16" Across Flats, 29/64" Thickness, 7/16-20 | 1 |
| X82895 | ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 3/4" Across Flats, 9/16" Thickness, 1/2-20 | 1 |
| X82897 | ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 15/16" Across Flats, 23/32" Thickness, 5/8-18 | 1 |
| X82898 | ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 1-1/8" Across Flats, 13/16" Thickness, 3/4-16 | 1 |
| X88435 | Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 17/64" ID, 5/8" OD, 5/64" Thickness, 1/4" | 1 |
| X88436 | Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 21/64" ID, 11/16" OD, 3/32" Thickness, 5/16" | 1 |
| X88437 | Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 25/64" ID, 13/16" OD, 3/32" Thickness, 3/8" | 1 |
| X88438 | Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 29/64" ID, 59/64" OD, 7/64" Thickness, 7/16" | 1 |
| X88439 | Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 33/64" ID, 1-1/16" OD, 9/64" Thickness, 1/2" | 1 |
| X88441 | Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 41/64" ID, 1-5/16" OD, 5/32" Thickness, 5/8" | 1 |
| X88442 | Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 49/64" ID, 1-1/2" OD, 5/32" Thickness, 3/4" | 1 |
| XA528 | Split Lock Washer, Alloy Steel, Zinc Finish, 1/4" | 1 |
| XA529 | Split Lock Washer, Alloy Steel, Zinc Finish, 5/16" | 1 |
| XA530 | Split Lock Washer, Alloy Steel, Zinc Finish, 3/8" | 1 |
| XA531 | Split Lock Washer, Alloy Steel, Zinc Finish, 7/16" | 1 |
| XA532 | Split Lock Washer, Alloy Steel, Zinc Finish, 1/2" | 1 |
| XA534 | Split Lock Washer, Alloy Steel, Zinc Finish, 5/8" | 1 |
| XA535 | Split Lock Washer, Alloy Steel, Zinc Finish, 3/4" | 1 |
| XA800 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 1/4-28 x 1/2 (80 Pc Cnt) | 1 |
| XA801 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 1/4-28 x 3/4 (70 Pc Cnt) | 1 |
| XA802 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 1/4-28 x 1 (60 Pc Cnt) | 1 |
| XA804 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 1/4-28 x 1-1/2 (60 Pc Cnt) | 1 |
| XA806 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 3/16" Head Height, 7/16" Across Flats, 1/4-28 x 2" | 1 |
| XA816 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 5/16-24 x 3/4 (50 Pc Cnt) | 1 |
| XA817 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 5/16-24 x 1 (50 Pc Cnt) | 1 |
| XA819 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 5/16-24 x 1-1/2 (40 Pc Cnt) | 1 |
| XA821 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 15/64" Head Height, 1/2" Across Flats, 5/16-24 x 2" | 1 |
| XA831 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/8-24 x 3/4 (40 Pc Cnt) | 1 |
| XA832 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/8-24 x 1 (35 Pc Cnt) | 1 |
| XA833 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/8-24 x 1-1/4 (30 Pc Cnt) | 1 |
| XA834 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/8-24 x 1-1/2 (30 Pc Cnt) | 1 |
| XA836 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/8-24 x 2 (25 Pc Cnt) | 1 |
| XA838 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/8-24 x 2-1/2 (20 Pc Cnt) | 1 |
| XA847 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 7/16-20 x 1-1/4 (25 Pc Cnt) | 1 |
| XA848 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 7/16-20 x 1-1/2 (20 Pc Cnt) | 1 |
| XA850 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 7/16-20 x 2 (20 Pc Cnt) | 1 |
| XA852 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 7/16-20 x 2-1/2 (15 Pc Cnt) | 1 |
| XA854 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 7/16-20 x 3 (15 Pc Cnt) | 1 |
| XA862 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 1/2-20 x 1-1/2 (20 Pc Cnt) | 1 |
| XA864 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 1/2-20 x 2 (15 Pc Cnt) | 1 |
| XA868 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 1/2-20 x 3 (10 Pc Cnt) | 1 |
| XA872 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 1/2-20 x 4 (8 Pc Cnt) | 1 |
| XA874 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 1/2-20 x 5 (4 Pc Cnt) | 1 |
| XA898 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 5/8-18 x 2 (8 Pc Cnt) | 1 |
| XA902 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 15/32" Head Height, 15/16" Across Flats, 5/8-18 x 3" | 1 |
| XA906 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 15/32" Head Height, 15/16" Across Flats, 5/8-18 x 4" | 1 |
| XA908 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 15/32" Head Height, 15/16" Across Flats, 5/8-18 x 5" | 1 |
| XA915 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/4-16 x 2 (6 Pc Cnt) | 1 |
| XA917 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/4-16 x 2-1/2 (6 Pc Cnt) | 1 |
| XA919 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/4-16 x 3 (5 Pc Cnt) | 1 |
| XA923 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/4-16 x 4 (3 Pc Cnt) | 1 |
| XA925 | Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, 3/4-16 x 5 (3 Pc Cnt) | 1 |
CT268A80
Tru-Torq® Hex Cap Screw Grade 9 Assortment
Tru-Torq Cap Screw Assortment
Premium
1/4 " - 3/4 "
Fine
Alloy Steel
9
Zinc
180,000 PSI
High Hex
Two 40 Hole Bins
55
3,412
31161501
No
Tru-Torq® Hex Cap Screw Grade 9 Assortment
Tru-Torq Cap Screw Assortment
Premium
1/4 " - 3/4 "
Fine
Alloy Steel
9
Zinc
180,000 PSI
High Hex
Two 40 Hole Bins
55
3,412
31161501
No
Description
Coarse Thread Assortments: 61 Items, 3,490 Pieces
Fine Thread Assortments: 55 Items 3,412 Pieces
• Diameters: 1/4" – 3/4"
• Lengths: 1/2" – 6"
• Includes Hex Nuts, Lock Washers, Flat Washers and Cap Screws
No substitutions on Standard Pre-Planned Assortments
ITEM#
DESCRIPTION
QTY
ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 7/16" Across Flats, 9/32" Thickness, 1/4-28
1
ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 1/2" Across Flats, 21/64" Thickness, 5/16-24
1
ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 9/16" Across Flats, 13/32" Thickness, 3/8-24
1
ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 11/16" Across Flats, 29/64" Thickness, 7/16-20
1
ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 3/4" Across Flats, 9/16" Thickness, 1/2-20
1
ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 15/16" Across Flats, 23/32" Thickness, 5/8-18
1
ANSI B18.2.2 Hex Nut, Thick, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 1-1/8" Across Flats, 13/16" Thickness, 3/4-16
1
Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 17/64" ID, 5/8" OD, 5/64" Thickness, 1/4"
1
Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 21/64" ID, 11/16" OD, 3/32" Thickness, 5/16"
1
Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 25/64" ID, 13/16" OD, 3/32" Thickness, 3/8"
1
Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 29/64" ID, 59/64" OD, 7/64" Thickness, 7/16"
1
Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 33/64" ID, 1-1/16" OD, 9/64" Thickness, 1/2"
1
Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 41/64" ID, 1-5/16" OD, 5/32" Thickness, 5/8"
1
Flat Washer, SAE, Thru-Hardened, Steel, Zinc Finish, 49/64" ID, 1-1/2" OD, 5/32" Thickness, 3/4"
1
Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 3/16" Head Height, 7/16" Across Flats, 1/4-28 x 2"
1
Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 15/64" Head Height, 1/2" Across Flats, 5/16-24 x 2"
1
Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 15/32" Head Height, 15/16" Across Flats, 5/8-18 x 3"
1
Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 15/32" Head Height, 15/16" Across Flats, 5/8-18 x 4"
1
Hex Cap Screw, Grade 9, Alloy Steel, Zinc Finish, Fine Thread, 15/32" Head Height, 15/16" Across Flats, 5/8-18 x 5"
1
Tech Specs
CT268A80
Tru-Torq® Hex Cap Screw Grade 9 Assortment
Tru-Torq Cap Screw Assortment
Premium
1/4 " - 3/4 "
Fine
Alloy Steel
9
Zinc
180,000 PSI
High Hex
Two 40 Hole Bins
55
3,412
31161501
No
Tru-Torq® Hex Cap Screw Grade 9 Assortment
Tru-Torq Cap Screw Assortment
Premium
1/4 " - 3/4 "
Fine
Alloy Steel
9
Zinc
180,000 PSI
High Hex
Two 40 Hole Bins
55
3,412
31161501
No
Documents:
