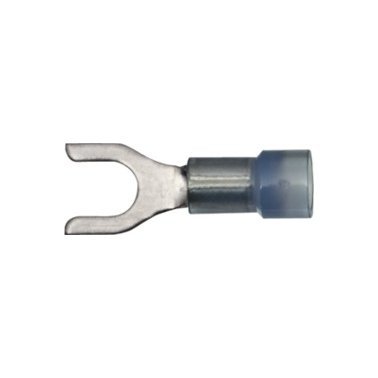

Visa Crimp™ Spade Terminal 16-14 AWG

Visa Crimp™ provides a high-quality crimp terminal connection. The brazed-seam barrel single crimp design will not open from wire pull, vibration or stress, providing a reliable connection.
Visa Crimp™ terminals feature:
• Brazed seam barrel
• Funnel-mouth barrel entry for easy wire insertion
• Long barrel for easier crimping in any position
•Translucent insulation for foolproof crimping; crack- and chemical-resistance
Visa Crimp™
• Allows rapid insertion on mounting screw
• Most commonly found on freestanding studs
• Manufactured from high-grade copper for the highest conductivity
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• Meets MIL-T-10727 Specifications
• Maximum voltage rating: 600V at 221°F (105°C); 1,000V in signs, fixtures and luminaries
• Amperage ratings: 26–24 Ga. 3A; 22–18 Ga. 7A; 16–14 Ga. 15A; 12–10 Ga. 30A
• Operating temperature: –40°F to +221°F (–40°C to +105°C)
For extreme duty
