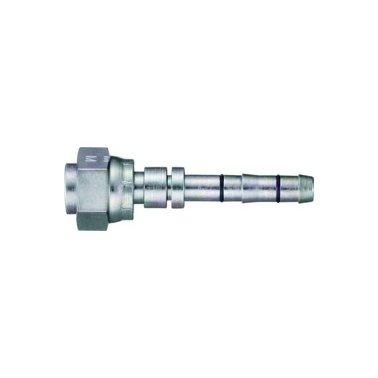

Weatherhead® E-Z Clip Field Attachable Fitting

• Make your own hose assemblies in minutes
• Reduce downtime and increase productivity
• Does not require hose-crimping machinery
• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
Use with GH134W Multi-Refrigerant Hose
Assembly Instructions
Step 1: Cut the hose. Be sure the cut is made square to the hose length.
Step 2: Slip on two clips.
Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.
Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.
Step 5: Snap the cage into the groove on the nipple.
Step 6: Slide the clips over the cage arms and into the channels on each arm.
Step 7: Close the clips.
E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.
Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
