    Home > Electrical > Wire Protection & Accessories > Heat Shrink Tubing Print email
    In Stock

    Heat Shrink 14-6 AWG

    Heat Shrink 14-6 AWG, Black, .400" I.D. Before Shrinkage .150" I.D. After Shrinkage Shrink Ratio-3 to 1 (Pack of 8)

    Item#: 86502

    Price: Log In

    Standard Pack: 8   ea.

    Ship Weight: 0.17

    Catalog Page#:9-26

    Usually Ships: Today

    Heat Shrink 14-6 AWG - 86502
    Quantity:
    Check Stock
    Add to List

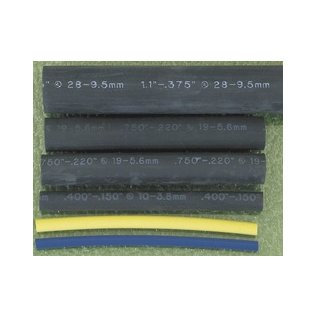

    Heat Shrink Assortment - LP211

    Item#: LP211
    Price: Log In
    Qty

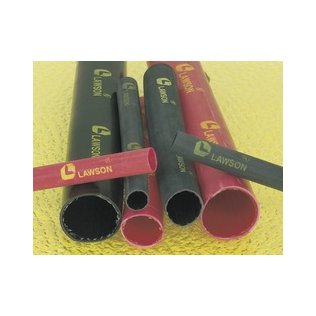

    Heat Shrink Assortment - LP579

    Item#: LP579
    Price: Log In
    Qty
    Restrictions: Hazardous Material: This item cannot ship via any air services. Please reference the SDS for hazardous information specific to this item. Additional shipping charges may apply.

    • 3:1 shrink ratio
    • Heat-activated adhesive liner surrounds material and yields a watertight seal
    • Non-corrosive with excellent fluid and fungus resistance: non-nutrient, inert
    • Meets UL Flammability Test Specification 94V2 and UL Specification 486D
    • Elongation: 425%
    • Minimum tensile strength: 1,542 PSI
    • Minimum dielectric strength: 275V/mil
    • Low-temperature flexibility: Four hours at –67°F (–55°C)
    • Maximum continuous operating temperature: 194°F (90°C)
    • Longitudinal change: 15% maximum, less than 5% typical
    • Rated at 600V
    • Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
    Wire gauge coverage is approximate due to the wide variance of wire thicknesses.

    86502
    Heat Shrink 14-6 AWG
    14-6 AWG
    6 "
    Black
    .400 "
    .150 "
    3 to 1
    .060 "
    600 V
    194 F
    425 %
    1542 PSI
    UL, CSA
    Tru-Shrink Heavy Wall Heat Shrink Tubing
    Heat Shrink Tubing
    39121723
    Yes

    Description

    • 3:1 shrink ratio
    • Heat-activated adhesive liner surrounds material and yields a watertight seal
    • Non-corrosive with excellent fluid and fungus resistance: non-nutrient, inert
    • Meets UL Flammability Test Specification 94V2 and UL Specification 486D
    • Elongation: 425%
    • Minimum tensile strength: 1,542 PSI
    • Minimum dielectric strength: 275V/mil
    • Low-temperature flexibility: Four hours at –67°F (–55°C)
    • Maximum continuous operating temperature: 194°F (90°C)
    • Longitudinal change: 15% maximum, less than 5% typical
    • Rated at 600V
    • Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
    Wire gauge coverage is approximate due to the wide variance of wire thicknesses.

    Tech Specs

    86502
    Heat Shrink 14-6 AWG
    14-6 AWG
    6 "
    Black
    .400 "
    .150 "
    3 to 1
    .060 "
    600 V
    194 F
    425 %
    1542 PSI
    UL, CSA
    Tru-Shrink Heavy Wall Heat Shrink Tubing
    Heat Shrink Tubing
    39121723
    Yes

    Restrictions

    Restrictions: Hazardous Material: This item cannot ship via any air services. Please reference the SDS for hazardous information specific to this item. Additional shipping charges may apply.
