Industrial Connector- 16-14 Gauge

• Easy, error-free installation – eliminates bolting, taping and loose connections
• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability

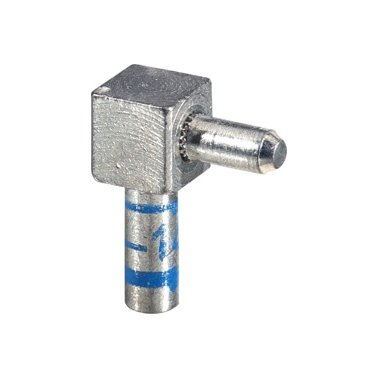

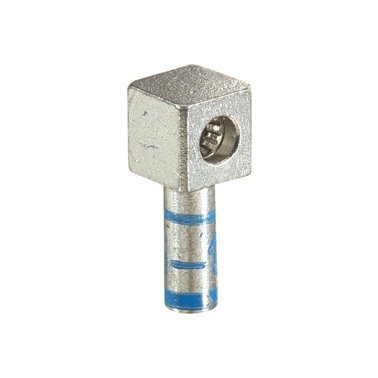

• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation
1. Choose appropriate color-coded connector for conductor size to be terminated.
2. Select proper installation die by matching die color to connector barrel color bands.
3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.
4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement c
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect an 8 Ga. male to a 2 Ga. female, select Item Nos. 94381 and 94393 – both have a #2 body size.
